Guidelines for Laser Optics v.I









Package includes:

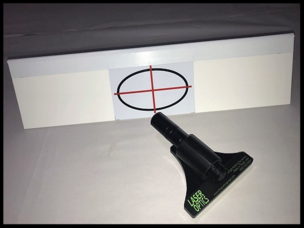

  • High power green laser with continuous On/Off button
  • Mounted to 3-legged laser platform. Laser is calibrated to project a point perpendicular to the base of the platform. Front leg is adjustable to control the vertical position of the laser point.
  • 16340 700mAh 3.7v rechargeable lithium battery
  • Target Backboard


My general steps to assess aim on a straight putt are…

  • Select a straight putt at a length of 8-10 feet. I use the Perfect Putter to select the straight putt. I want to ensure there nothing that might influence a misalignment.
  • I then instruct my student to step through their normal routine to execute a putt. If they normally use a line on the ball, have them use the line, etc. It is important to aim with the ball in front of the face, it can affect aim.
  • When golfer is set at address, ready to stroke, and acknowledge that they are aligned to the hole, I secure the putter with my left hand, move the ball, square the laser base plate to the putter face, and project the light.
  • Prior to assessing aim, I remove the front leveler leg on the base plate. With the base plate squared against the putter face, and back legs secured on the ground, simply tilt the front end up/down and the laser point will trace the aim path on the surface of the green. Years ago, I realized that an above ground Target Backboard can affect the perception of hole, and thus aim in some folks. Therefore, I don’t chance it and I no longer use the Target Backboard.
  • I typically repeat the assessment process at least three times to establish consistency. Normally, if someone aims left, they consistently aim left, and vice versa. I have my student close their eyes on each attempt. I do not want them to see the results until I have established a trend. If you allow them to look, they of course will attempt to improve their misalignment on each following attempt.
  • I also observe their body and eye-line alignment. Typically, if someone aims left, their body and eye-line is aligned left, and vice versa.
  • Advanced – repeat the same process for breaking putts. Have your player identify their aim point, whether a spot located in their perceived path, or a linear spot near the hole (example, two inches left of hole).

Re-calibration – Occasionally, the accuracy of the laser may be altered due to a strong jarring, such as dropping it laser side down on concrete. The laser can easily be re-calibrated. First, remove the lens cap and check to see if the brass leader is loose. If so, there are two parts that can be tightened. First, unscrew the aluminum base and remove it from the barrel. Next, tighten the bottom aluminum housing. Re-insert and tighten the laser into the barrel. If the laser is still inaccurate, using the four #10 set screws on the sides of the laser housing. To move the laser to the left, unscrew the front left side set screw ¼ turn and tighten the front right side set screw ¼ turn. Repeat until you achieve accuracy. I use a 4’ builders T-square. Square the T to a wall, square the laser against the same surface and run the laser up and down the edge of the 4’ ruler. Very easy and very accurate.


Guidelines for Laser Optics v.II

Laser Optics v.II is a high power green laser with two unique features.

  1. The laser is projected through the prism of a specially designed lens cap which can be adjusted to create the ideal solid line.
  2. The laser incorporates a Power ON Receiver Cap which allows the unit to operate both manually and via a wireless remote control.

The Laser Opitcs v.II laser is offered in two models; Laser Optics v.II Deluxe and Laser Optics v.II Training.


Laser Optics v.II Deluxe











The LO v.II Deluxe is mounted and calibrated to a triangular base plate. This design will allow an instructor to assess putter aim with either the solid line or point (remove front cap to project point). The solid line can be used for start line, stroke accuracy, and visualization training. You can project solid line by strategically placing the base plate on the ground. Adjust the front leveler leg up or down to control length of projected line. Or, you can attach the base plate to the tripod (included) to create higher angles for line control. For example, you can place the tripod behind the ball and project a solid line over an atop the ball extending start line in front.

Package includes:

  • High power green laser with Power ON button for manual and remote use.
  • Mounted to 3-legged laser platform. Laser is calibrated to project a point perpendicular to the base of the platform. Front leg is adjustable to control the vertical position of the laser point.
  • Tripod
  • 16340 700mAh 3.7v rechargeable lithium battery (+45-50 minute working life)
  • Wireless ON/OFF remote control with CR2025 3.0v lithium battery
  • Battery Charger Kit (Charger + 2 – 16340 3.7v rechargeable batteries)

Important Note: We have equipped your laser with a 16340 700mAh 3.7v rechargeable battery. In general, charge life is typical rechargeable battery is 1/3 that of a standard lithium battery. Our testing indicates a charge life of 45-50 minutes with this product. When recharging battery, you will maximize the use by allowing the charge cycle to complete to green status.


Laser Optics v.II Training











LO v.II Training was designed specifically for the golfer. Its simple design allows for quick set up and easy use. Position the laser behind the target and project start line back at the golf ball. Or, position laser from behind and project line over golf and extend forward for start line, stroke accuracy, and visualization training. Strategically turn laser OFF, set up, then turn ON for set up confirmation. Putt with laser ON/OFF alternately for accuracy and visualization training.

 Package includes:

  • High power green laser with Power ON button for manual and remote use.
  • Mounted to Tripod
  • 16340 700mAh 3.7v rechargeable lithium battery (40-50 minute working life)
  • Wireless ON/OFF remote control with CR2025 3.0v lithium battery
  • Battery Charger Kit (Charger + 2 – 16340 3.7v rechargeable batteries)


Usage tips:

  • Power Button – Push once and the light will project + wireless remote will operate OFF/ON. Push Power button again and system is OFF.
  • To remove battery, unscrew the Receiver Cap at the rear of the laser tube. Positive end of battery should be directed outward. Make sure Receiver Cap it tight.
  • For LO v.II Deluxe, the laser can operate from the base, or can easily be screwed onto any standard tripod.
  • For LO v.II Training model, remove laser/mount from bubble wrap and screw onto tripod.
  • Remove the plastic tab from the Wireless Remote. For best results, point Remote directly at Receiver. From directly behind the laser, remote signal can work from 15-20'. From other angles, the working distance is limited.
  • The front lens cap rotates, allowing you to adjust the vertical position of the line. For example, if you set the laser on a slope, you can adjust the lens cap to compensate for the tilt. You can also affect the profile characteristic of the line. Use the specifications sticker as a guide to set calibration.
  • The front lens cap can be removed entirely and the laser will project a point. With the front cap removed, the LO v.II can assess putter aim similar to LO v.I. See directions above.
  • With the front lens cap attached, you can project start lines, entry lines, and laser “chalk line”.
  • The wireless remote should operate effectively from +6-8 feet when pointed directly at back of laser. The wireless receiver is located on the back end cap.
  • Strategically turn laser ON/OFF to hone and assess visualization skills.
  • Ideal conditions are early morning, late afternoon, overcast skies, and shadows. I personally prefer projecting shorter start lines or cup entry lines and allow the imagination to visualize the complete path. Shorter lines 3-4’ can be seen in brighter sun conditions. See demonstration videos on my website at www.wrightputtingdyanmics.com.

Laser Optics v.I and v.II User Guidelines

A few helpful Laser tips about lasers...

  • If the laser discontinues working, first ensure battery cap is tightened to the extreme. Recharge the 16340 3.7v battery. To remove battery, simply unscrew the button end of the laser barrel. Positive end points outward.
  • If the remote becomes weak or discontinues working, replace the CR2025 3.0v remote battery. To replace remote battery, simply undo latch (located on back end near wrist band) and slide out.
  • CR123a 3.0v is a common battery and can be found in most retail stores that carry batteries. The 16340 3.7v is not as common, but can be found at battery specialty stores or online. An excellent online U.S. supply source is www.batteryjunction.com.
  • NEVER point a laser pointer of any power at anybody. Do not point at aircraft.
  • Avoid "mirror like" (specular) targets and NEVER - NEVER stare into a pointer! Also, NEVER view a laser beam using an optical instrument, such as binoculars, microscope, etc.
  • These laser pointers are not toys and should not be used by juveniles.
  • One should NEVER use a laser pointer above 5mW. The green laser incorporated in LASER OPTICS v.II is no greater than 5mW.

Frequently Asked Questions:

  • Can the laser be seen in the bright sunlight?  Unfortunately, the bright sunlight will filter out most lasers. The longer the line is stretched, the more the power is dispersed, and the fainter the line becomes. However, you can effectively project 2-3' start lines, even in brighter conditions.
  • How long does the battery charge last?  A fully charged battery will last 40-50 minutes when left on continuously. The added Charger Kit was a must. The additional 2 batteries provide and additional 1.5 hours of usage time.
  • Do you provide a product warranty? Yes, each laser and remote carries a warranty for 90 days. However, we pride ourselves in ensuring your satisfaction with the product.
